Budget ???? Lewmar VX1 GD Deck Unit Vertical Windlass Extended Kit 8mm ST/ST 500W ✔️

Lighter, stronger and more efficient

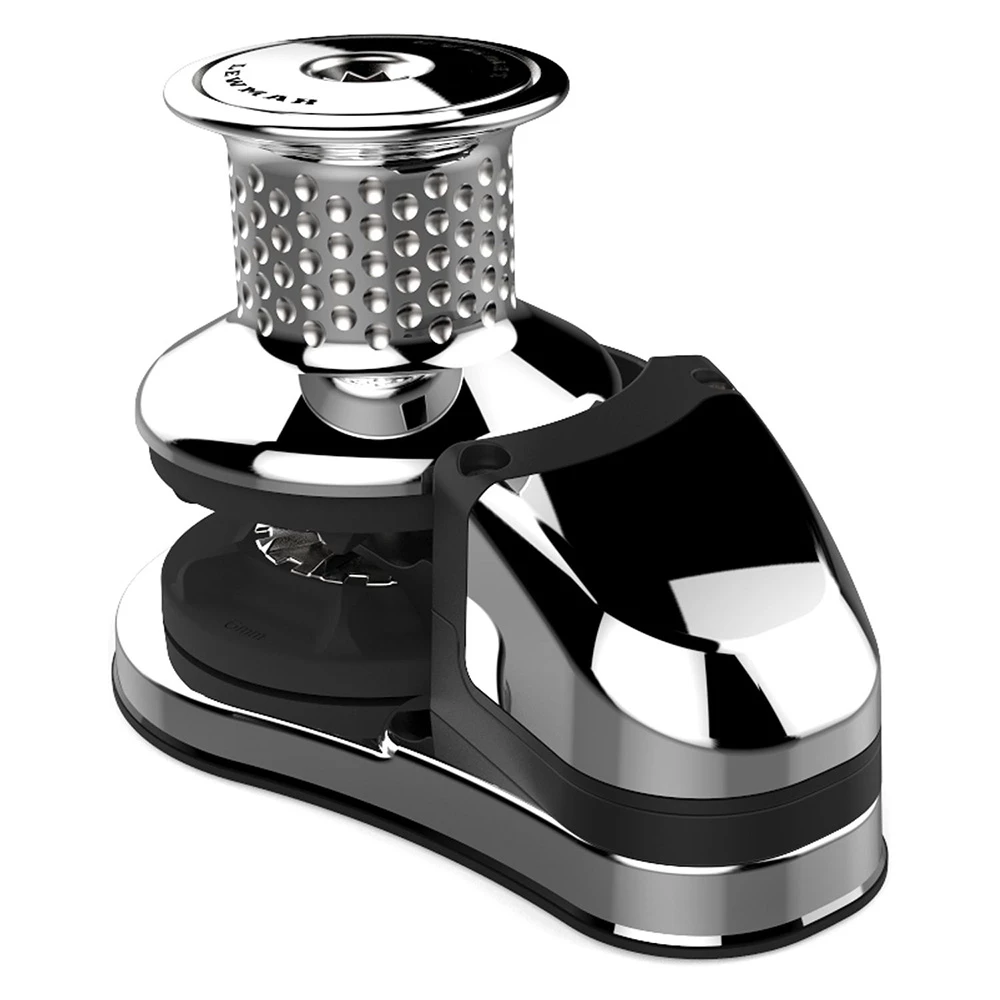

The Lewmar VX1 GD Deck Unit Vertical Windlass
offers a stylish yet functional unit without the bulk. Taking the
tough and elegant lines of the V series, Lewmar have strived to
remove excess weight – replacing heavy materials with modern
composites, whilst retaining strength. The new 1P67 rated motor
gear box package is first ingress protection (IP) cover that Lewmar
has offered on a windlass of this size, and is optimised for top
anchoring performance.

VX1 Extended windlass kit includes Deck unit, Motor gearbox,
Solenoid, Rocker switch, Cuircit Breaker and Gypsy

Lewmar VX1 GD Deck Unit Vertical Windlass
Features:

• VX1- Robust worm wheel gearbox
• Stylish stainless steel and composite construction
• IP67 cover as standard
• Same footprint as V1 model

Motor Gear Box Features:

• Silicone sealant free assembly
• Orientation flexibility that can be set by the end
  user
• Self-certified to Ingress Protection level 67 and to EN
  60529
• This new IP cover is not backwards compatible with any RMI40
  gearbox and not available on the V1, CPX0 700w or CPX1
  windlasses

Lewmar VX1 GD Deck Unit Vertical Windlass
Specifications:

• Chain Description: 8 mm Din766, 8 mm ISO4565, 5/16” Acco ISO
  G43 (G4)
• Line Description: 1/2″-5/8″ 3 Strand Hard Lay Up
• Motor Power: 500W
• Max Pull: 1488 lbs
• Working Load: 373 lbs
• Max Line Speed: 82 Ft/Min
• Normal Current Draw: 126 Amp
• Circuit Breaker: 70 Amp
• Approx Weight (Gypsy Drum): 30 lbs

What’s in the box:

• Windlass
• Deck unit
• Motor gearbox
• Solenoid
• Rocker switch
• Cuircit Breaker
• Gypsy
