Top 10 ???? Lewmar V700G Vertical Windlass Winch For Boats Up To 10.5m ????

Unique anchor lock for your safety

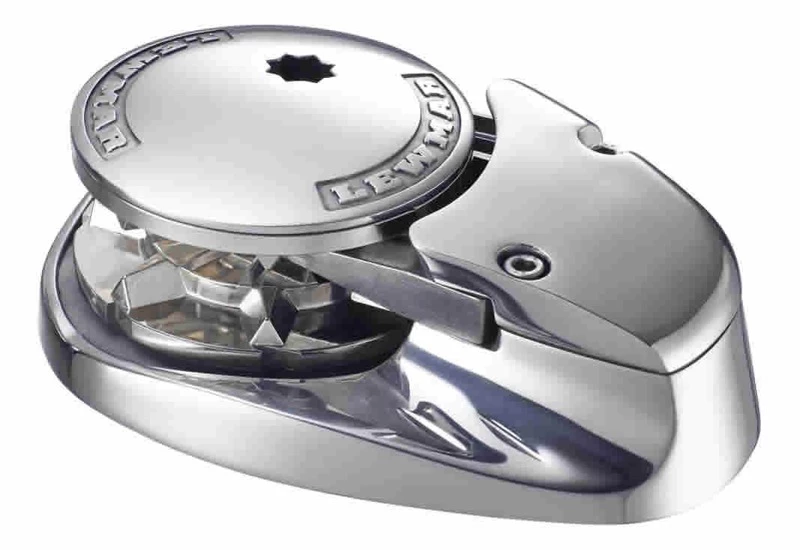

With a 100% 316 stainless steel housing and a sleek flush-mount
design that hides the motor down below, the Lewmar V700G
Vertical Windlass Winch is one of the most attractive and
durable windlasses on the market. It works at the push of a button
and has two built-in features that make it unique – motor
protection and anchor lock.

Manual Freefall function instructions:

1. Disengage the capstan drive by pressing the plunger button on
   the capstan drive cap and pressing the locking button until the
   plunger remains in the down position.
2. Release any anchor locks
3. When safe insert the Lewmar wrench in to the capstan drive cap.
   Rotate clockwise to grip the gypsy and anti-clockwise to free the
   gypsy controlling the rate of descent of the anchor. Once deployed
   adjust desired scope if using a rope/chain, lock the clutch by
   turning the drive cap clockwise and engage the anchor locks. Remove
   the wrench handle.

Lewmar V700G Vertical Windlass Winch for Boats up to 33ft
Features:

• Includes switch, solenoid and circuit breaker
• Fits calibrated chains: 6mm DIN766, 1/4″ G4 or BBB, 7mm
  DIN766
• 100% 316 stainless steel deck unit
• IP Rated Housing
• Fall Safe anchor lock
• Fast line speed
• Manual recovery option
• Impact-resistant motor cover
• For boats up to 10.5m (35 ft)

Lewmar V700G Vertical Windlass Winch
Specifications:

• Dimensions: 7.34 x 5 x 11.0625in / 186 x 127 x 281mm
• Motor supply voltage: 12V
• Motor power: 320W
• Max pull: 320kg
• Max line speed: 25m/min
• Working load: 79kg
• Normal current draw: 45A
• Typical line speed: 15m/min
• Weight: 6.5kg
• Circuit breaker: 35A
• Rope and chain recommendation: 7mm chain, 12mm rope

What’s in the box:

• Lewmar V700G Vertical Windlass Winch
• Intelligent mounting studs, washers and nuts
• All-in-one installation wrench and clutch lever
• Base gasket seal
• Safety instructions
• Mounting template
• Instruction booklet
• Breaker/isolator
• Control switch

Lewmar V700G Vertical Windlass Winch User Manual

Note:“Pro Set” rope is the most
effective rope to use on windlass anchor winches.
