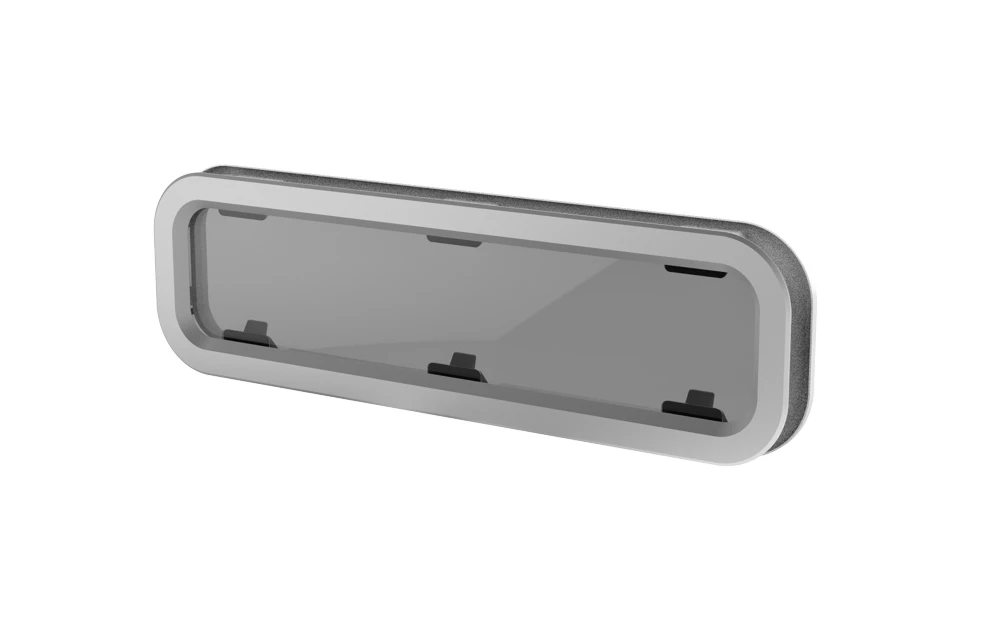

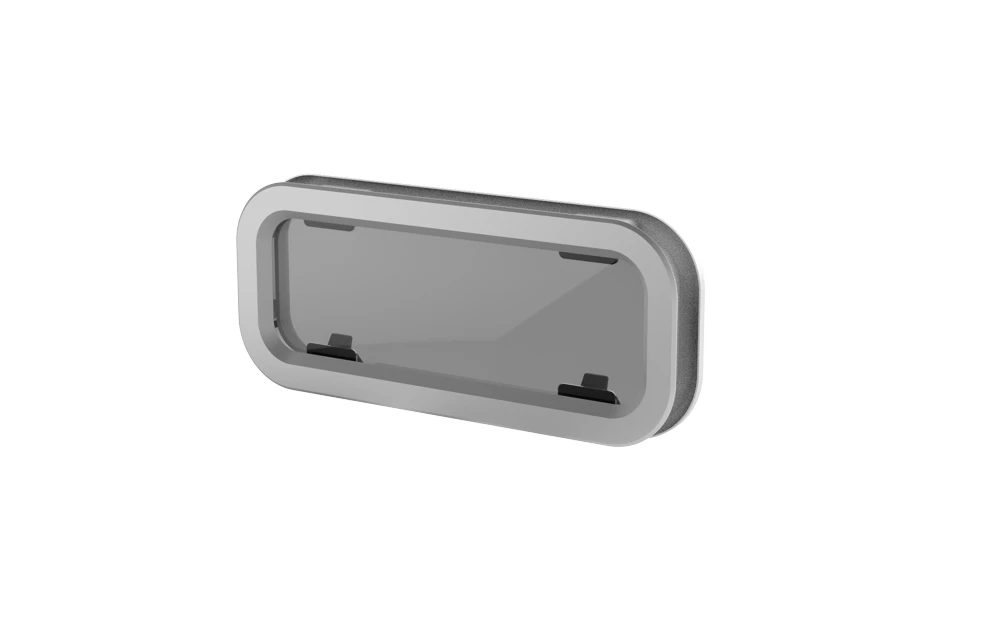

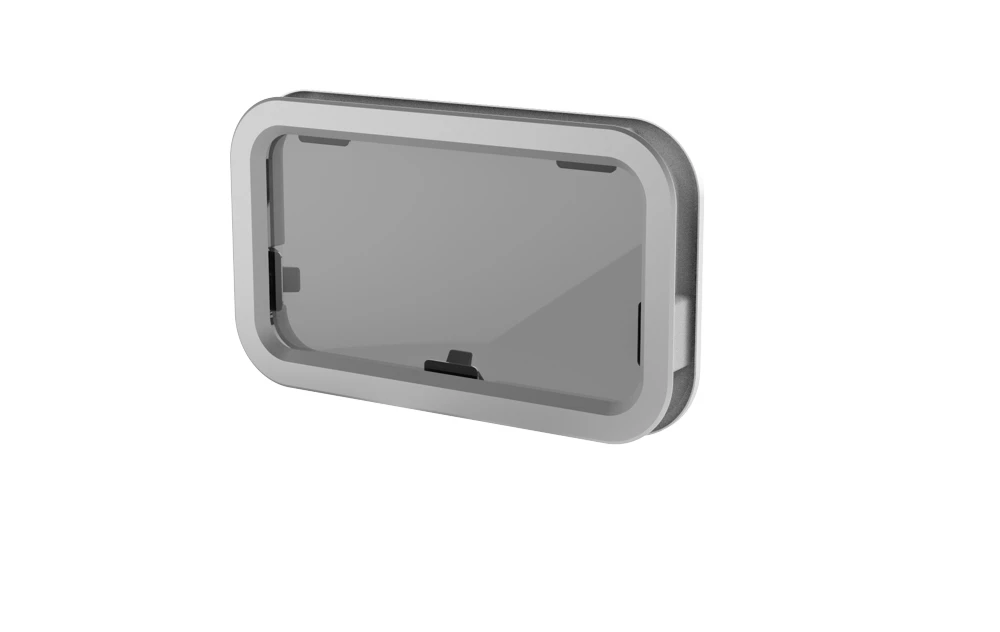

Discount ???? Lewmar Standard Opening Portlight ????

A perfect match for any hatch in the Lewmar range, the Standard Portlight is stylish, competitively priced and easy to both use and install.

Features:

• Easily fitted by clamping the cabin sides between inner and outer frame with screws provided that are fastened into the outer frame
• Can be installed with sealant or closed cell PVC tape
• White ABS Plastic Trim
• Supplied complete with flyscreen (except sizes 4L and 4R)
• Full range of spare parts available

Specifications:

Version	Acrylic Colour	Trim Colour	Hatch Weight(kg)	Acrylic Window Thickness(mm)
Opening	Smoke Grey	White	1.4	8

Version	Acrylic Colour	Trim Colour	Hatch Weight(lb)	Acrylic Window Thickness(in)
Opening	Smoke Grey	White	3.08	5/16

Overall Width X(mm)	Overall Length Y (mm)	Overall Height Z (mm)	Overall Radii R(mm)	Cut-Out Width X1 (mm)	Cut-Out Length Y1 (mm)	Cut-Out Radii R1 (mm)
176	425	4	62	156	405	52

Overall Width X(in)	Overall Length Y (in)	Overall Height Z (in)	Overall Radii R(in)	Cut-Out Width X1 (in)	Cut-Out Length Y1 (in)	Cut-Out Radii R1 (in)
6 15/16	16 3/4	5/32	2 7/16	6 1/8	15 15/16	2 1/16
