Fast and powerful
The horizontal Lewmar Pro-Series 1000G Anchor
Windlass is ideal for boats from 6-11.5m (20-38ft). It’s
DIY-ready, easy to install and housed in 100% 316 stainless steel,
making it well protected. With a push-button control and a built-in
manual emergency recovery system, anchoring has never been
easier.

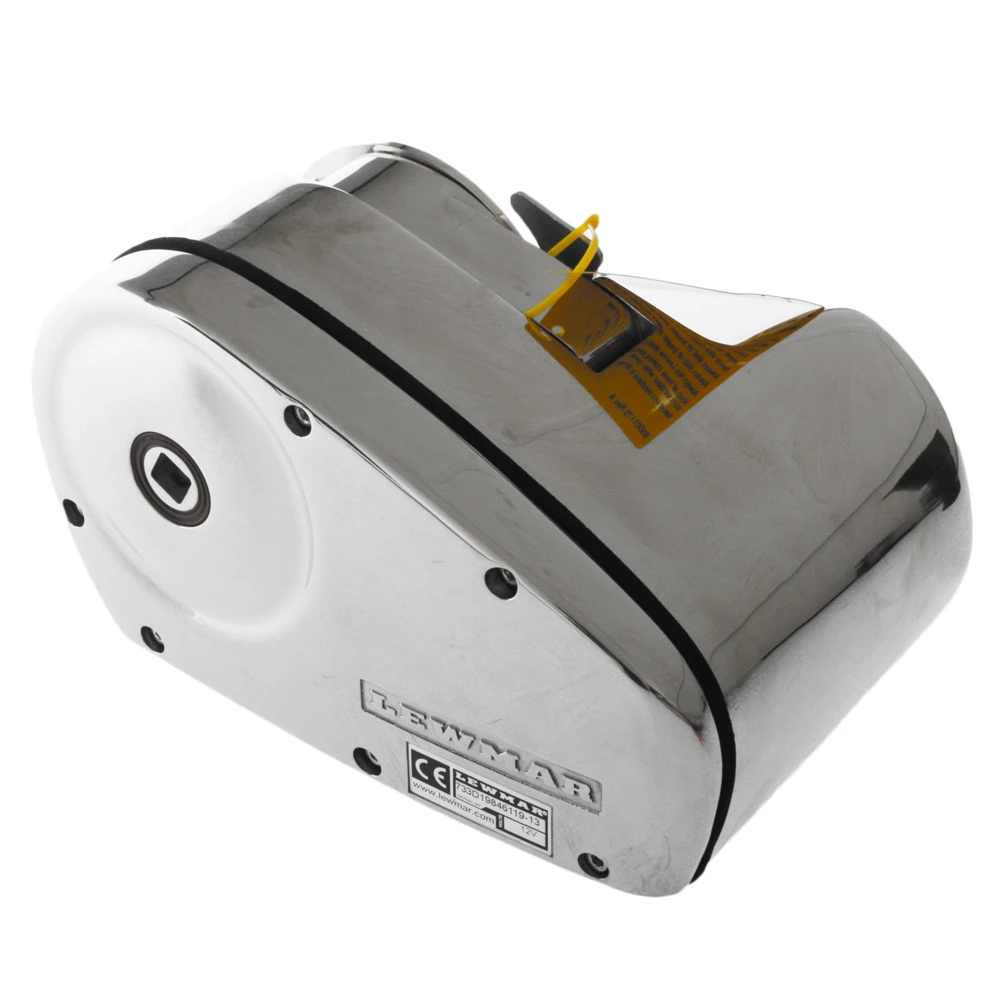

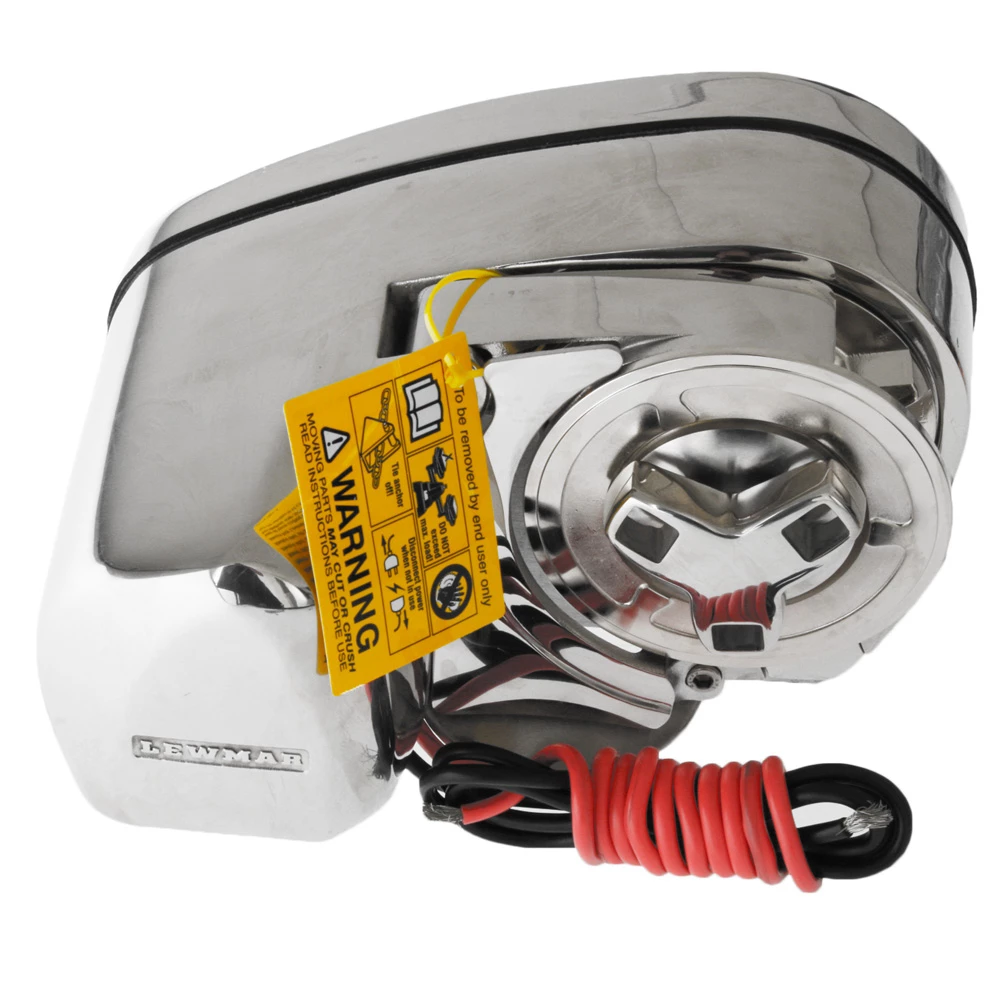

Lewmar Pro-Series 1000G Anchor Windlass
Features:
- Powerful motor providing fast line speed
- Manual emergency recovery equipped all you need is a common 1/2
socket wrench - Strong 100% 316 stainless steel, including control arm and
stripper - Maximum pulling power: 454kg (1,000 lb)
- Convenient above-deck installation
- For boats up to 12m (38ft)
- 5-year warranty
Lewmar Pro-Series 1000G Anchor Windlass
Specifications:
- Dimensions: 245 x 178 x 146 mm
- Max Chain: 8mm (5/16in)
- Motor Supply: 12v
- Motor Power: 700w
- Maximum Pull: 454kg (1000lb)
- Maximum Line Speed: 32 m/min (105 ft/min)
- Working Load Limit: 114kg (250lb)
- Normal Current Draw: 50 Amp
- Circuit Breaker: 70 Amp
- Weight: 9.5kg
- Chain: 8mm DIN 766, 5/16″ BBB, 8mm ISO 4565
- Rope: 14-16mm 3-strand and 8-plait (5/8 only)
What’s in the box:
- Windlass
- Base gasket seal
- Fast mounting studs
- Installation wrench

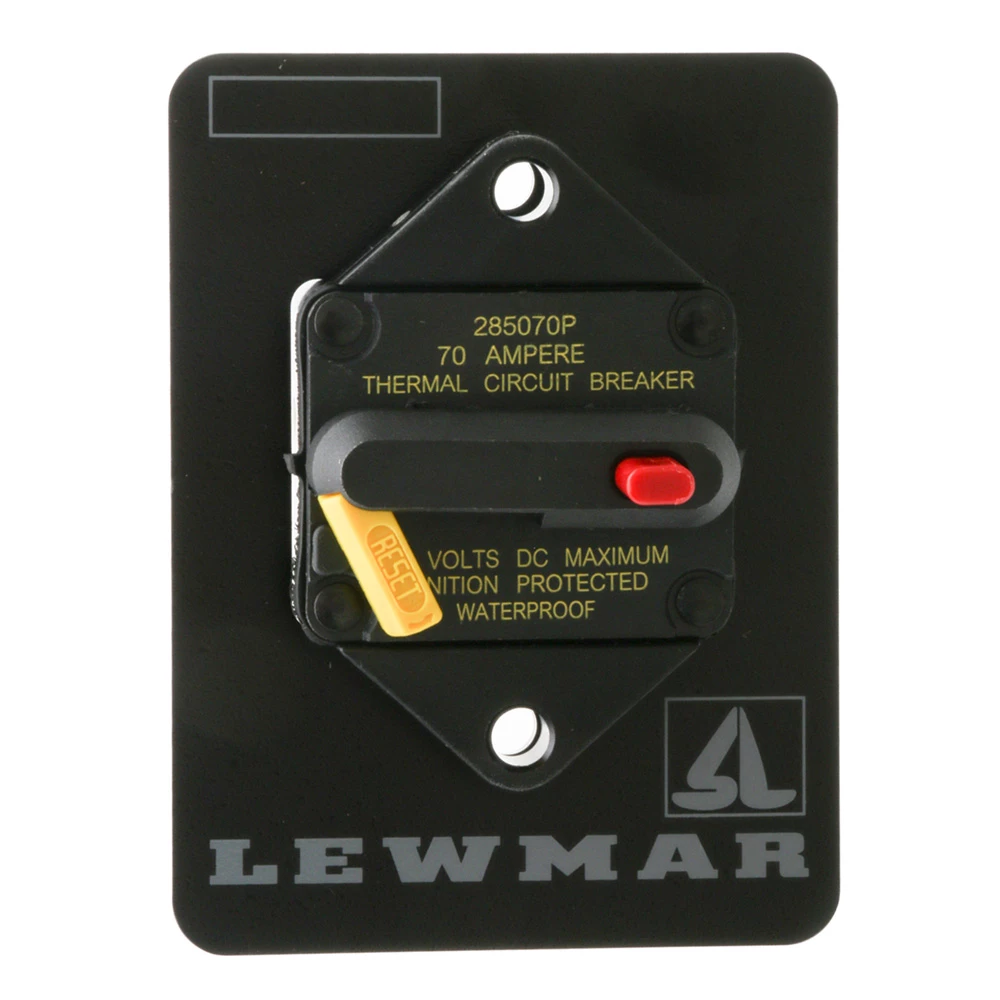

- Circuit breaker

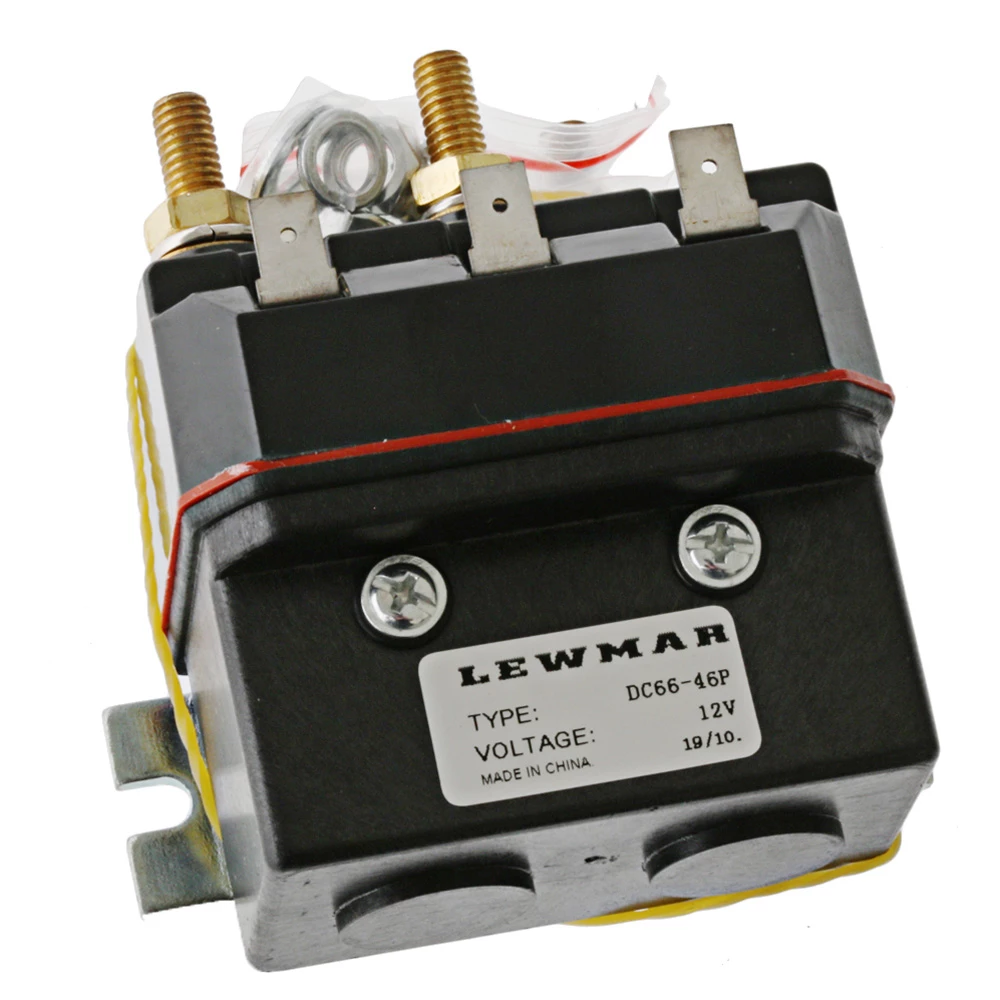

- Dual-direction solenoid

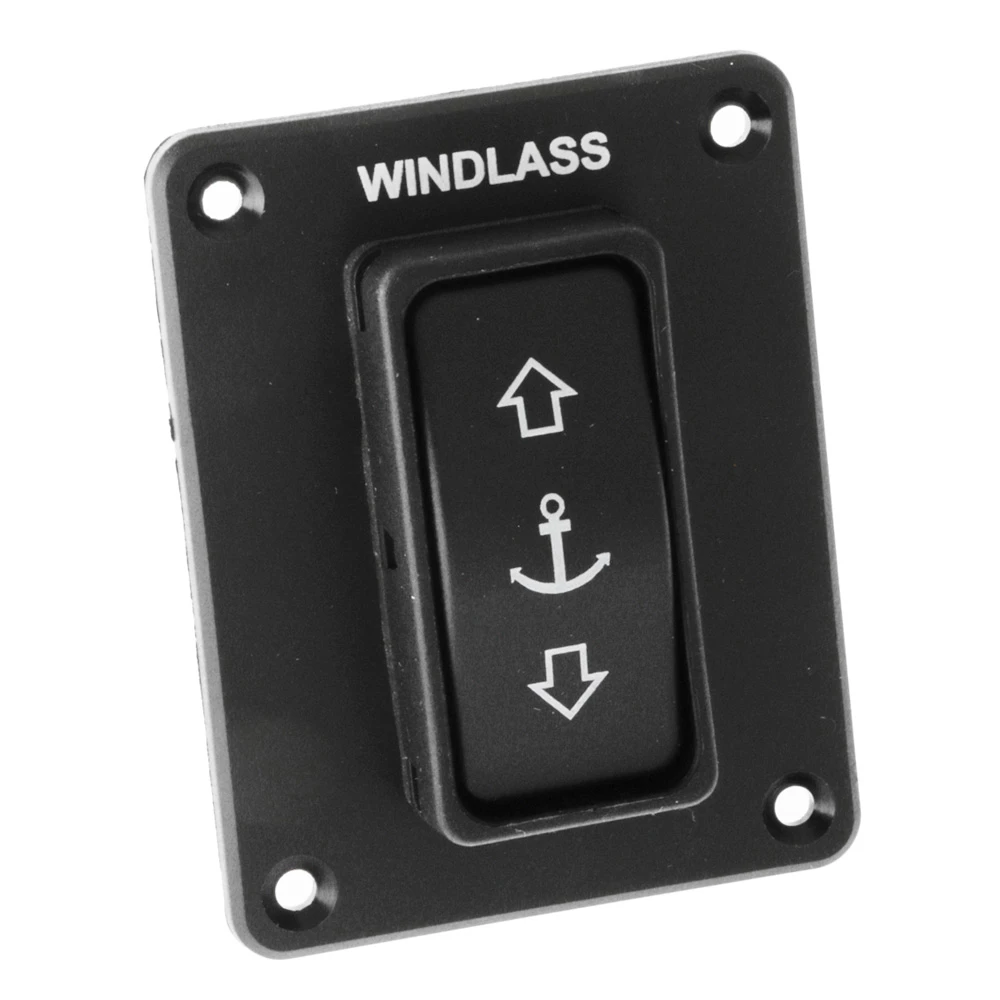

- Guarded rocker switch
Note: A Pro-Fish conversion kit is available
for the Pro-Series Windlass to allow freefall. Wireless remote can
only be used if a contactor/solenoid unit is fitted
