The ultimate windlass for you; with automatic free-fall

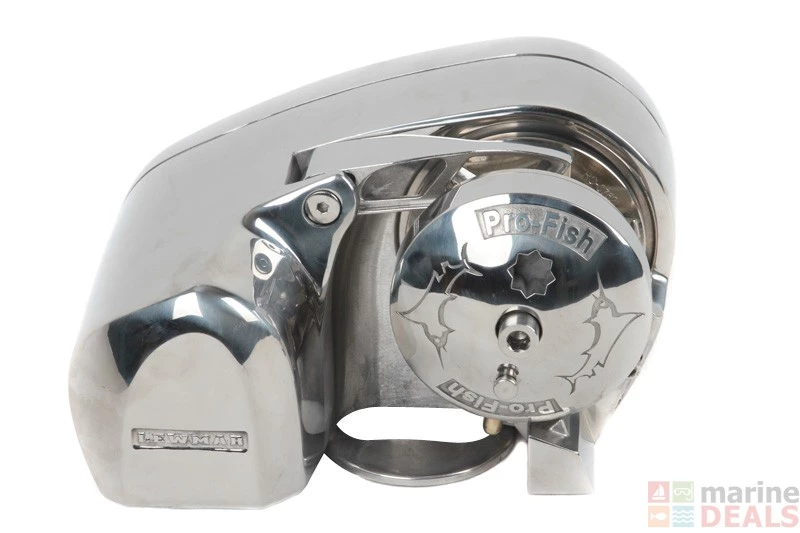

The Lewmar Pro-Fish 1000 Freefall Anchor Windlass
is the ultimate windlass for fishermen. The Pro-Fish has an
automatic freefall that allows you to pull right up over a wreck or
ledge, and drop anchor with speed and precision. Now, there is no
more need to run your motor or waste fuel while you hover your
catch. Plus, you can retrieve your anchor just as easily, with the
push of a button. On top of that, the Pro-Fish is DIY-ready and
made of durable 100% 316 stainless steel.
Lewmar Pro-Fish 1000 Freefall Anchor Windlass
Features:
- Automatic freefall
- Powerful motor providing fast line speed
- Manual emergency recovery equipped (all you need is a common
1/2 socket wrench) - Strong 100% 316 stainless steel, including control arm and
stripper - Maximum pulling power: 454kg (1,000 lb)
- Convenient above-deck installation
- Includes switch, solenoid and circuit breaker
Lewmar Pro-Fish 1000 Freefall Anchor Windlass
Specifications:
- Dimensions: 245 x 178 x 146 mm
- Max Chain: 8mm (5/16in)
- Motor Supply: 12v
- Motor Power: 700w
- Maximum Pull: 454kg (1000lb)
- Maximum Line Speed: 32 m/min (105 ft/min)
- Working Load Limit: 114kg (250lb)
- Normal Current Draw: 50 Amp
- Circuit Breaker: 70 Amp
- Weight: 9.5kg
- Gypsy Number: 504
- Chain: 8mm DIN 766, 5/16″ BBB, 8mm ISO 4565
- Rope: 14-16mm 3-strand and 8-plait (5/8 only)
What’s in the box:
- Free fall conversion kits
- Windlass
- Base gasket seal
- Fast mounting studs
- Installation wrench
- Circuit breaker
- Dual-direction solenoid
- Rocker switch
Note: “Pro Set” rope is the most
effective rope to use on windlass anchor winches.
