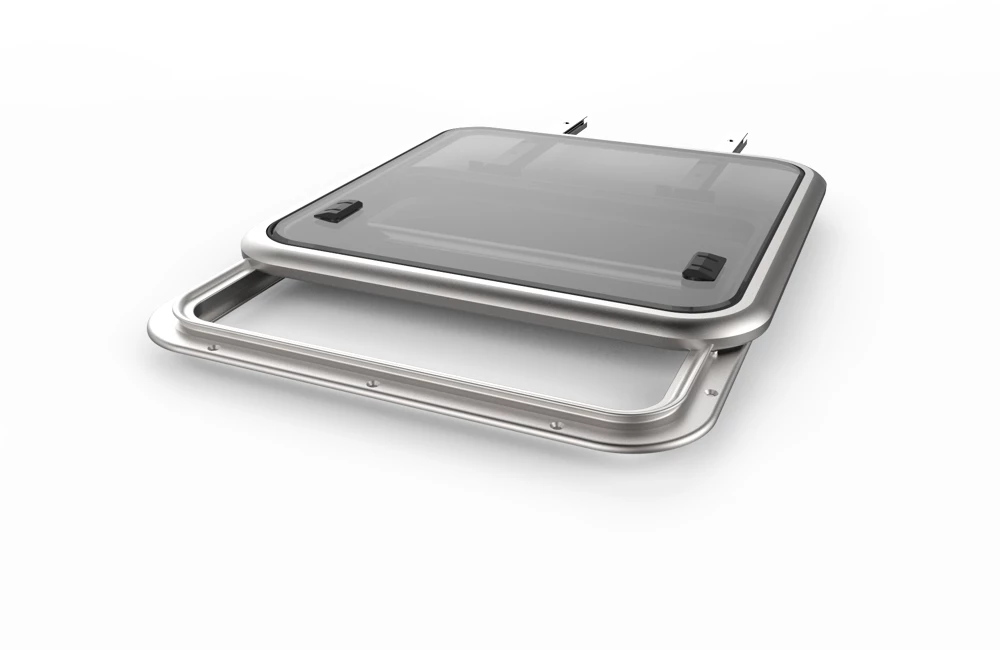

Brand new ???? Lewmar Pilot Hatch Size 60 ????

The Pilot Hatch is designed for use on the wheelhouse or cockpit canopy of a power craft, and the styling complements the Low Profile and Medium Profile Hatch Ranges.

 Opens up enclosed steering positions

 The handle never moves out of reach

  Operated with a single handlebar that rotates to seal down the hatch

 Can be secured with a 5cm opening when full ventilation is not required

 Acrylic can be replaced without the use of sealant

  Sliding technology from Lewmar’s racing hardware track systems, ensuring minimum friction

  The Pilot Hatch uses Lewmar’s unique seal system for improved sealing and easy servicing

  Click on the specifc variant to see the available sparesSpecifications:

Acrylic Colour	Hatch Weight (kg)	Acrylic Window Thickness (mm)
Smoke Grey	7.5	10

Acrylic Colour	Hatch Weight (lb)	Acrylic Window Thickness (in)
Smoke Grey	16.5	3/8

Lower Frame Flange (mm)	Length X (mm)	Width Y (mm)	Height Z (mm)	Radii R (mm)	Track Length T (mm)	Cut-Out Length X1 (mm)	Cut-Out Width Y1 (mm)	Cut-Out Radii R1 (mm)
15	581	577	29	73	373	507	507	42.5

Lower Frame Flange (in)	Length X (in)	Width Y (in)	Height Z (in)	Radii R (in)	Track Length T (in)	Cut-Out Length X1 (in)	Cut-Out Width Y1 (in)	Cut-Out Radii R1 (in)
9/16	22 7/8	22 11/16	1 1/8	2 7/8	14 2/3	14 1/2	19 15/16	11 1/16

Product Data Sheet
