Promo ✔️ Lewmar Ocean Hatch Size 20 266 X 411 X 39.5 Mm ????

Rugged construction for years of service

With its classic style, the Lewmar Ocean Hatch is fitted to thousands of boats around the world. Its rugged construction provides the ultimate protection against the elements, whatever conditions you might face.

Mounting Instructions:

• Fit to a flat surface with a maximum tolerance of +/- 1mm
• Fastening size at hinge section use (M6 / 1/4″)
• Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA
• Flat base hatches cannot be used with Trim kits or Roller shades

Lewmar Ocean Hatch Features:

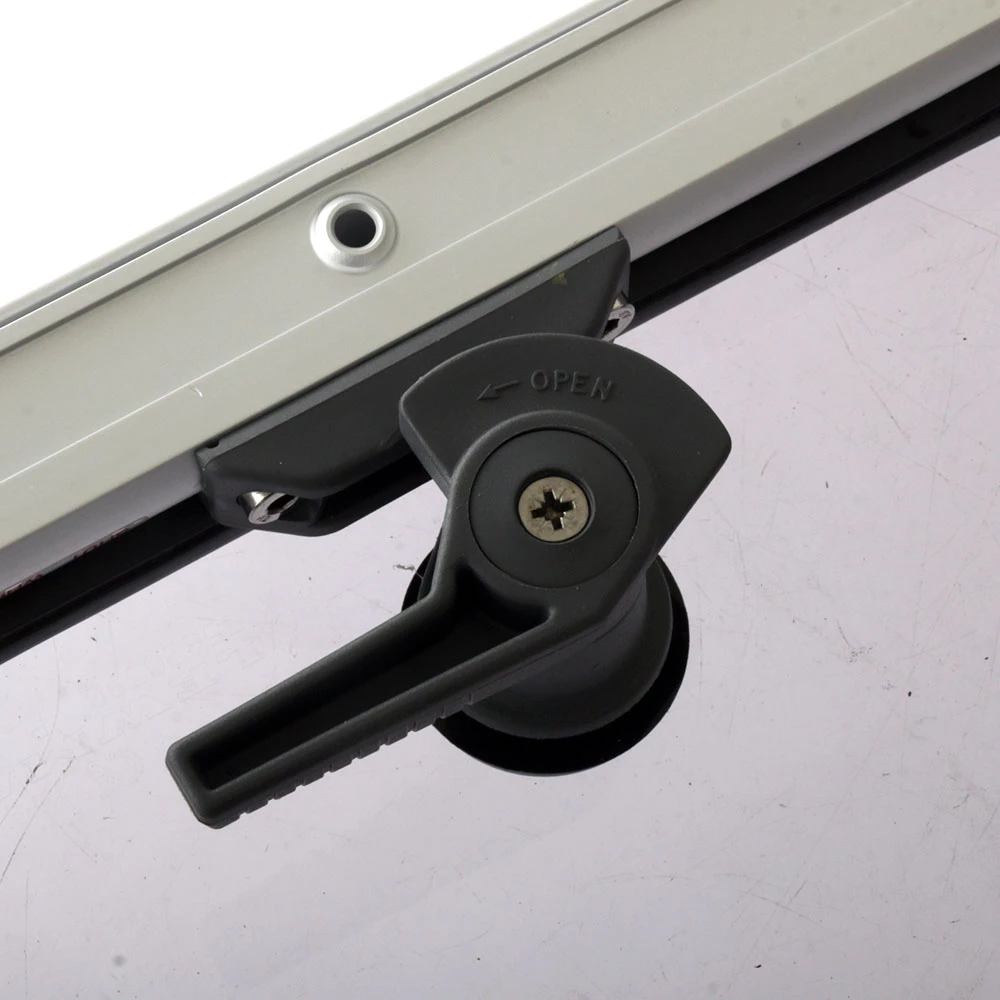

• Friction levers hold the lid open in any position up to 95°
• Anodised aluminium frame for corrosion resistance
• All sizes suitable for CE Area 2 (Deck, Coachroof, Cockpit and Transom)
• Flat base flange

Lewmar Ocean Hatch Specifications:

• Product code: 39620050
• Overall dimensions: 266 x 411 x 39.5 mm
• Radii: 69mm
• Cut-out dimensions: 202 x 347 x 42.5 mm
• Cut-out length (flat): 197mm
• Cut-out width (flat): 342mm
• Cut-out radii (flat): 34mm
• Hinge length: 5mm
• Hinge width: 225mm
• Hatch weight: 2.74kg
• Acrylic window thickness: 10mm
