Easy access hatch

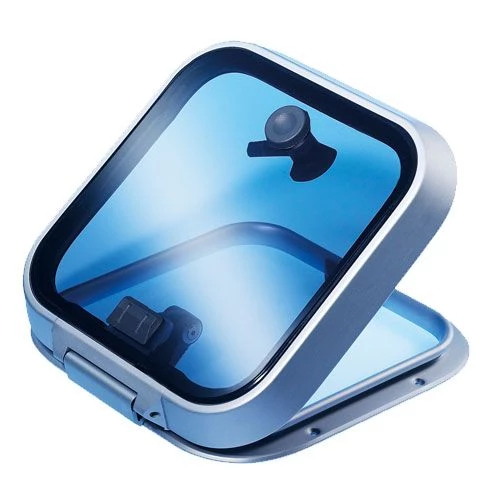

Designed for deck and cockpit installation, the Lewmar
Ocean Hatch features a unique integral seal, making it
completely leak-proof. Its two piece aluminium frame with bonded
gray acrylic lens and external hinges provides a safe and easy
access while its smooth, rounded edges minimises snags. The Ocean
hatch’s rugged construction provides you the ultimate protection
against the elements, whatever conditions you might face.
Lewmar Ocean Hatch Features:
- Choice of flat base or 25mm through deck flange
- Shock resistant acrylic lens: sizes 10 – 40 have 3/8″ thick
lenses; sizes 44 – 77 have 1/2″ thick lenses - Friction hinge allows for any open position without the need
for support arms - Conforms to CE Area 2: deck, coachroof, cockpit or transom use
(tested to 2 psi) - Internal/external lockable handle assemblies
- Hull/deck thickness: min/max 1″ to 2-13/16″
- Meets all of the open ocean category standards
Dimensions:
| Size | Length (mm) | Width (mm) | Height (mm) | Radii (mm) | Hinge Length (mm) | Hinge Width (mm) | Cut-out Length (mm) | Cut-out Width (mm) | Cut-out Radii (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 10, Flat Base | 324 | 324 | 39.5 | 75 | 5 | 138 | 255 | 255 | 40 | 2.26 |
| 20, Flange Base | 266 | 411 | 39.5 | 69 | 5 | 225 | 202 | 347 | 36.5 | 2.74 |
| 60, Flat Base | 574 | 574 | 43 | 76 | 4 | 367 | 502 | 502 | 40 | 8 |
| 60, Flange Base | 574 | 574 | 43 | 76 | 4 | 367 | 507 | 507 | 42.5 | 8 |
| 70, Flange Base | 694 | 694 | 43 | 76 | 4 | 487 | 627 | 627 | 42.5 | 10.8 |
