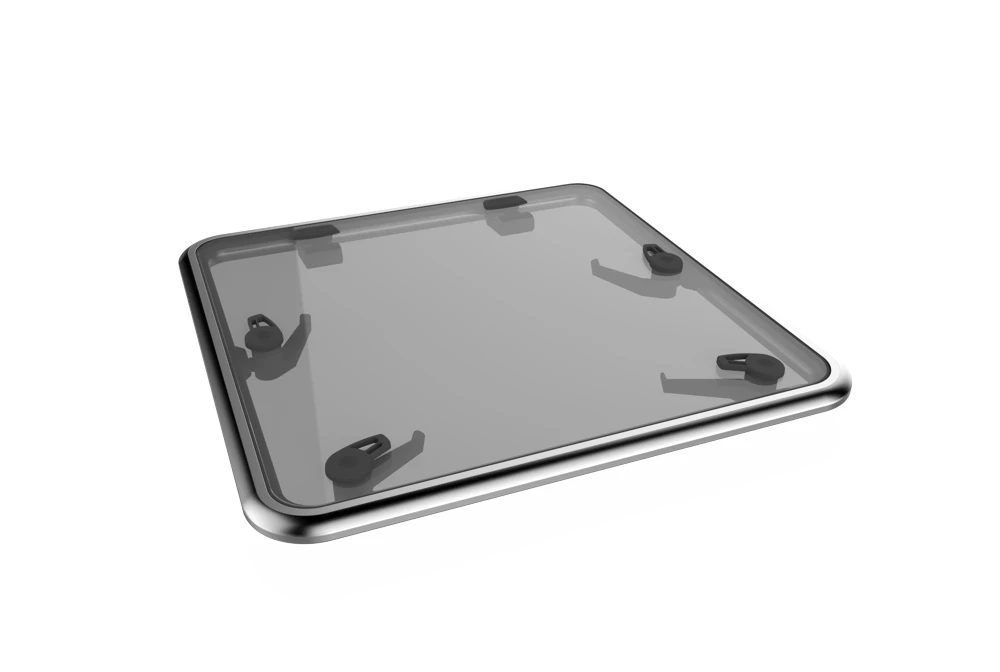

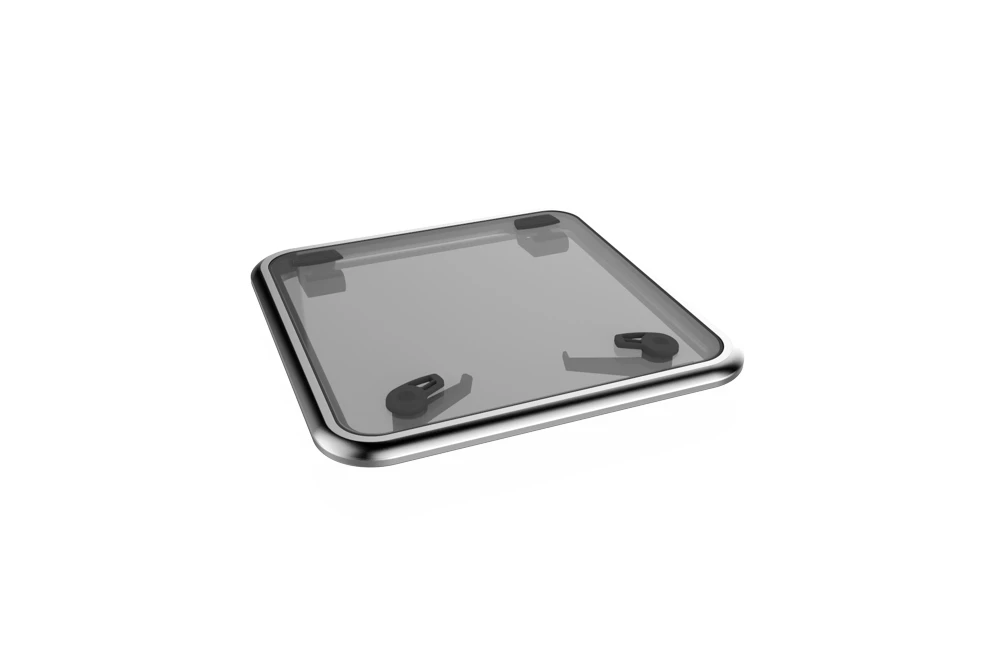

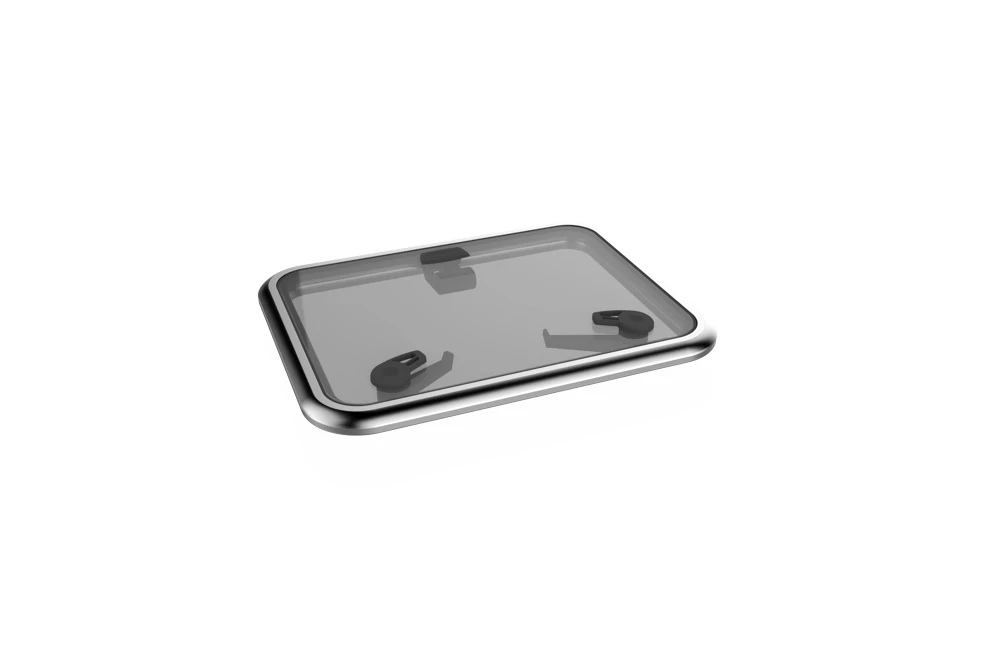

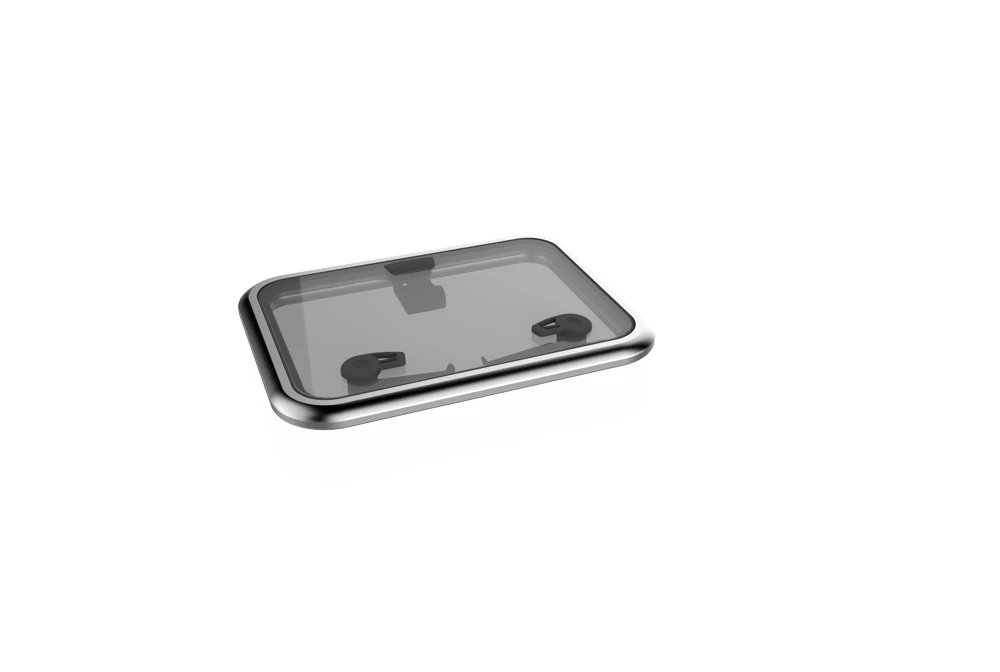

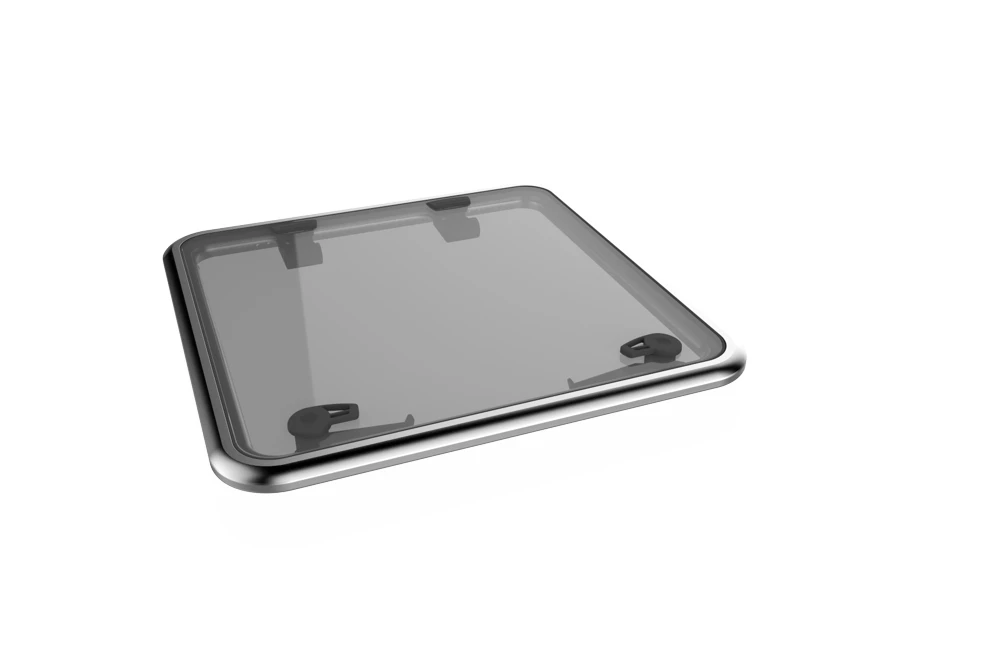

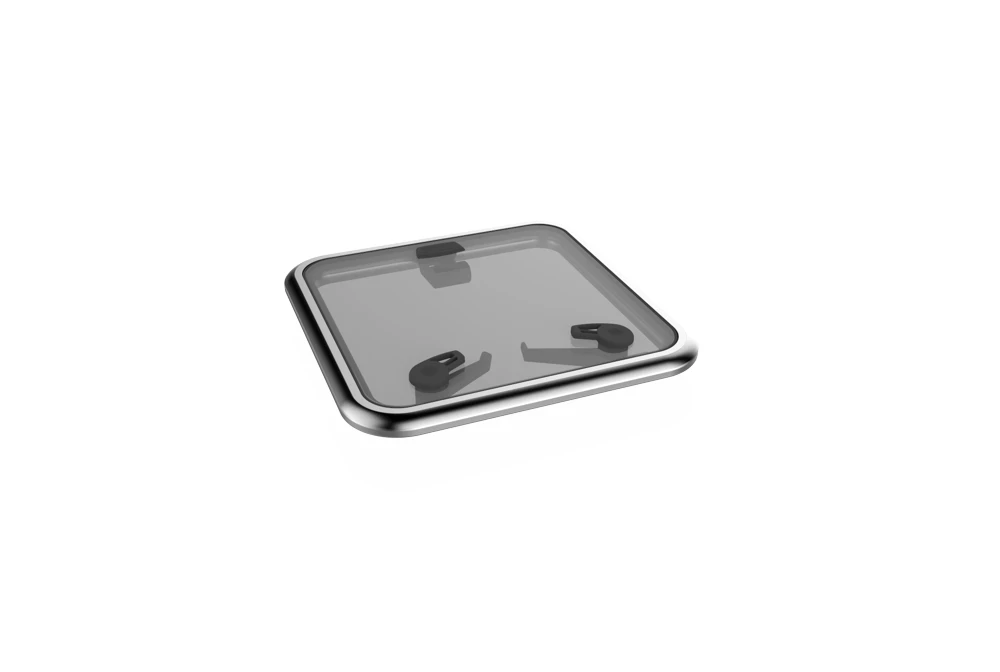

Ideal as a foredeck hatch on larger offshore yachts, the Medium Profile has thicker acrylic and deeper frame sections for greater strength and durability. It features Lewmar’s unique sealing system, allowing for easy acrylic replacement. All while retaining the smooth, modern lines of the Low Profile Hatch.
| Lower Frame (mm) | Acrylic Colour | Hatch Weight (kg) | Acrylic Window Thickness (mm) |
|---|---|---|---|
| 15 | Smoke Grey | 5 | 12 |
| Lower Frame (in) | Acrylic Colour | Hatch Weight (lb) | Acrylic Window Thickness (in) |
|---|---|---|---|
| 9/16 | Smoke Grey | 11.1 | 1/2 |
| Length X (mm) | Width Y (mm) | Height Z (mm) | Radii R (mm) | Cut-Out Length X1 (mm) | Cut-Out Width Y1 (mm) | Cut-Out Radii R1 (mm) |
|---|---|---|---|---|---|---|
| 397 | 527 | 32 | 72.5 | 327 | 457 | 42.5 |
| Length X (in) | Width Y (in) | Height Z (in) | Radii R (in) | Cut-Out Length X1 (in) | Cut-Out Width Y1 (in) | Cut-Out Radii R1 (in) |
|---|---|---|---|---|---|---|
| 15 5/8 | 20 3/4 | 1 1/4 | 2 7/8 | 12 7/8 | 18 | 1 11/16 |
Product Data Sheet
