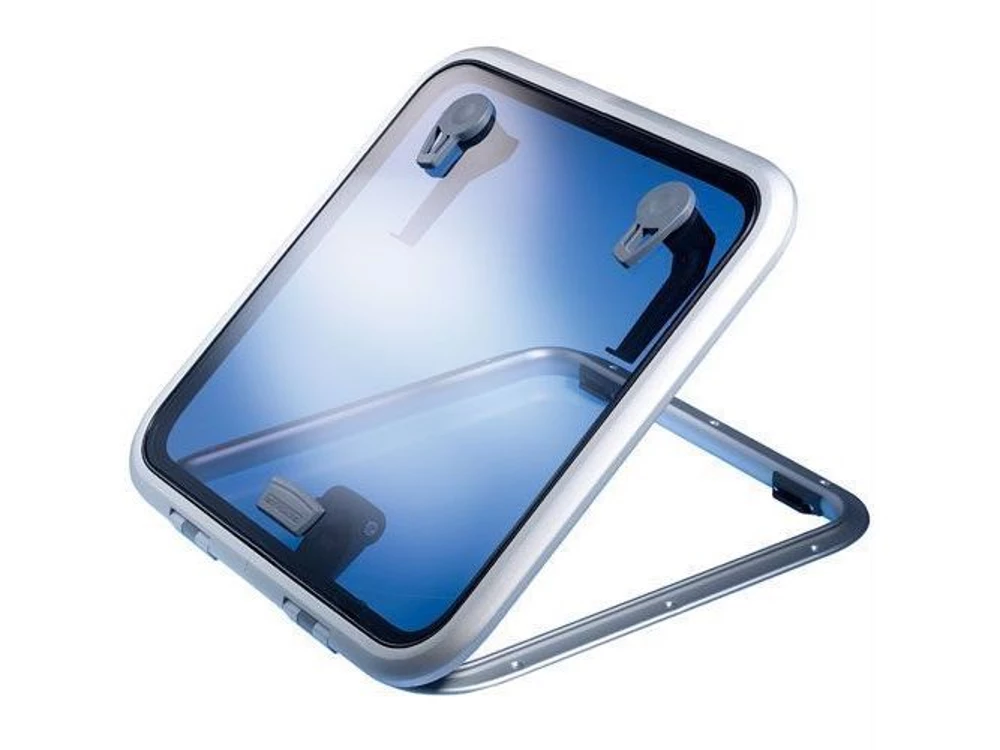

Best Pirce ???? Lewmar Low Profile Self Supporting Hatch ✔️

The Low Profile Hatch has soft styling and sleek looks, ideal for use on a powerboat. Smaller ventilation hatches are suitable for any deck location on sailboats, while the larger sizes can be used as foredeck hatches on smaller to mid size yachts.

Outside handles allow the hatch to be opened from on deck if it is not locked (Sizes 00, 03,10, 20 and 41 have no outside handle and can only be opened from the inside.)

Low profile hatches open up to 180 degrees (round hatches open to 170 degrees)

Friction levers hold the lid open in any position up to 95 degrees

Anodised aluminium frame for corrosion resistance

Curved upper frame profile for strength as well as modern styling

Available in Round and D-Hatch configuration

Full range of spare parts available

Mounting Instructions
Fit to a flat surface with a maximum tolerance of +/- 1mm.
Fastening size at hinge section use (M6 / 1/4′).
Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.

Specifications:

Support System	Lower Frame (mm)	Acrylic Colour	Hatch Weight (kg)	Acrylic Window Thickness (mm)
Self Supporting	15	Smoke Grey	1.6	8

Support System	Lower Frame (in)	Acrylic Colour	Hatch Weight (lb)	Acrylic Window Thickness (in)
Self Supporting	9/16	Smoke Gray	3.5	5/16

Length X (mm)	Width Y (mm)	Height Z (mm)	Radii R (mm)	Cut-Out Length X1 (mm)	Cut-Out Width Y1 (mm)	Cut-Out Radii R1 (mm)
246	301	25	72.5	176	231	42.5

Length X (in)	Width Y (in)	Height Z (in)	Radii R (in)	Cut-Out Length X1 (in)	Cut-Out Width Y1 (in)	Cut-Out Radii R1 (in)
9 11/16	11 7/8	1	2 7/8	6 15/16	9 1/8	1 11/16
