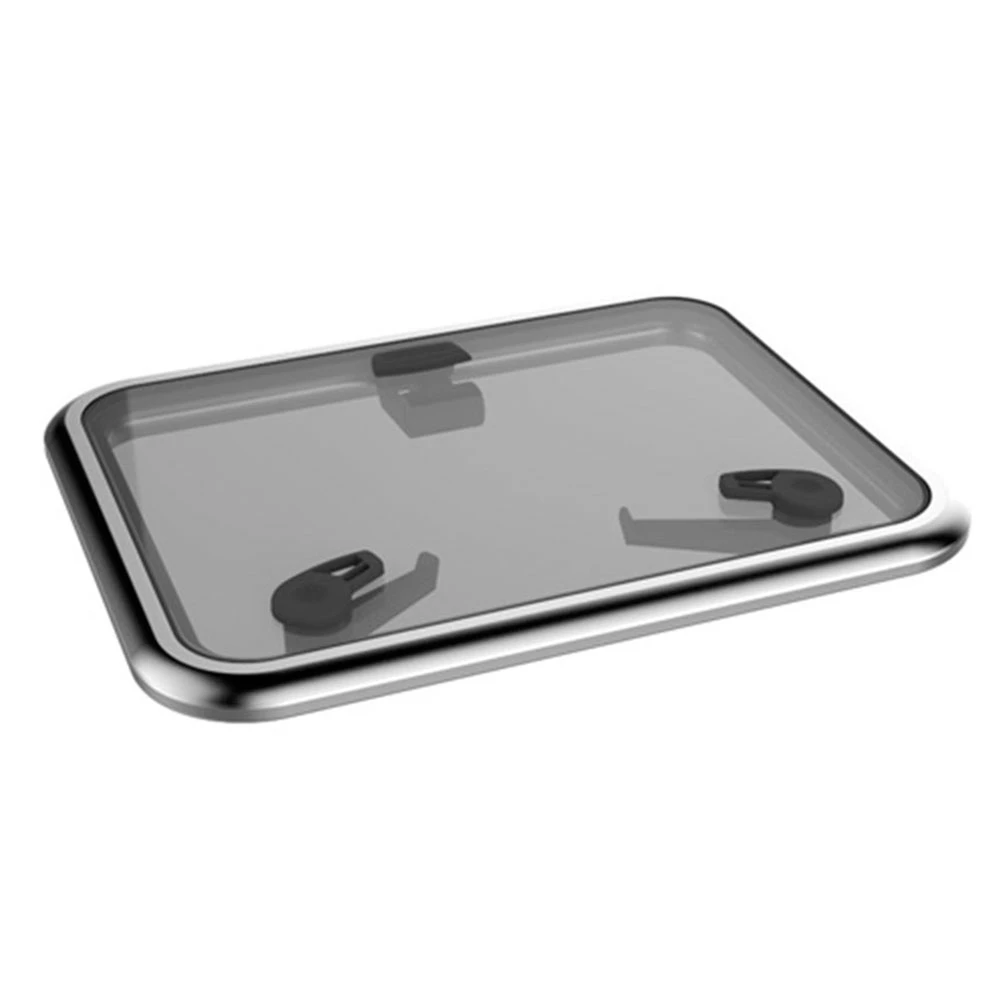

New ???? Lewmar Low Profile Hatch Flange Base Size 60 ????

Durable and classy

The sleekly designed Lewmar Low Profile Hatch can
be used as foredeck hatches on smaller to mid size yachts. It
features Lewmar’s unique sealing system allowing easy acrylic
replacement. The curved upper frame profile provides soft fluid
styling and adds strength. Friction hinges are used to support the
lid without a friction lever, reducing the free fall on the lid
once it is opened past 95 degrees.

Mounting Instructions
Fit to a flat surface with a maximum tolerance of +/- 1mm.
Fastening size at hinge section use M6 (1/4′). Fastening size for
lower frame use 5mm CSK screw No.10 UNC 2 BA.

Lewmar Low Profile Hatch Specifications:

• Support System: self-supporting
• Lower frame: 15mm
• Acrylic colour: Smoke Grey
• Hatch weight: 6.4kg
• Thickness: 10mm
• Dimensions (LxWxH): 577 x 577 x 25mm
• Radii: 72.5mm
• Cut-out length: 507mm
• Cut-out width: 507mm
• Cut-out radii: 42.5mm
