New and improved

Lewmar fuses its legendary quality with state of the art technology
to give you the most advanced winch range ever – the EVO. The

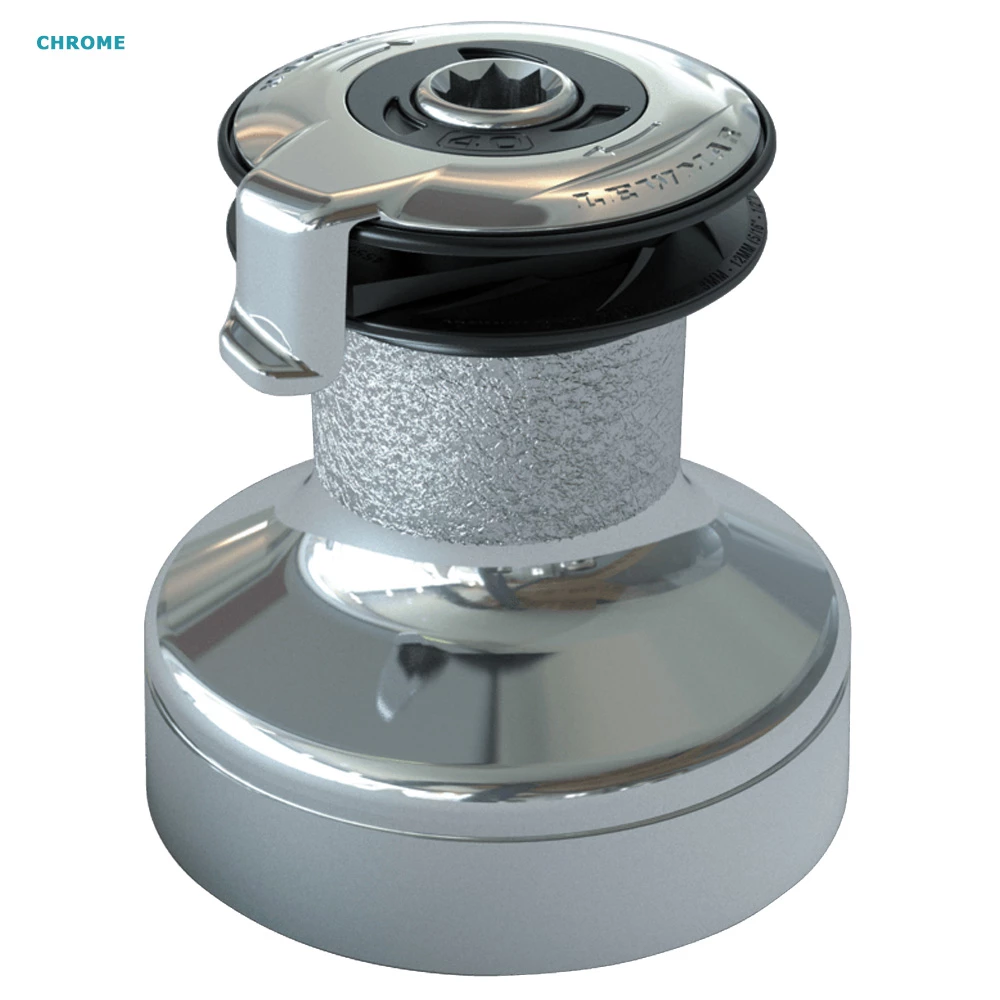

Lewmar EVO Self-Tailing Winch is a development
that contains years of knowledge and understanding of what boat
builders and sailors want. No compromises have been made in terms
of quality or integrity of design.

Simple Servicing
No tools are required to service a Lewmar EVO winch. Simply unscrew
the top cap with your fingers to remove the drum and provide access
to the proven gear train.

Multiple Styles and Finishes
EVO winches are available in black or grey alloy and chrome bronze
for the cruising sailor. Manual winches feature single speed or two
speed, while Size 40 to Size 80 are available with electric or
Hydraulic operation.

Wave Spring Jaw and Feeder Arm
The integrated investment cast stainless steel feeder arm
completely covers the top of the winch, preventing a rope trap
above the Wavespring jaws. The feeder arm position can be adjusted
to smoothly feed the rope out of the jaws and into the cockpit.

Engineering Excellence
For Lewmar customers, there is no such thing as “just a winch”.
That’s because inside every winch you will find materials developed
over many years, designed using the latest techniques, and machined
using CNC equipment. When we machine the winches we are looking for
the maximum in efficiency, durability, and strength to weight
ratio.

Electric Winches
Whatever sailing you do, short handed or long distance cruising,
the decision to install electric winches or upgrade your existing
winches with one of our conversion kits is simple.

Lewmar EVO Self-Tailing Winch Features:

• Easy Servicing – no tools required
• User friendly direction arrows
• Available in chrome and alloy

Lewmar EVO Self-Tailing Winch Specifications:

Model	Finish	Gear Ratio (1st)	Gear Ratio (2nd)	Power Ratio (1st)	Power Ratio (2nd)	WLL	Weight	Drum Diameter	Base Diameter	Height	Line Entry	Line Size (mm)
45ST	Chrome	2.4:1	7.6:1	13.9:1	44.8:1	1200kg	9.7kg	87mm	168mm	177.7mm	84mm	8-14mm
50ST	Chrome	2.6:1	9:1	13.9:1	48.6:1	1250kg	12.3kg	93mm	181mm	197mm	90mm	8-14mm
55ST	Chrome	2.8:1	11.2:1	13.8:1	54:1	1480kg	18kg	105mm	205mm	233mm	115mm	8-16mm
65ST	Chrome	3.1:1	14.8:1	13.4:1	64:1	1700kg	23.8kg	118mm	228mm	251mm	119mm	8-18mm
50ST	Alloy	2.6:1	9:1	13.9:1	48.6:1	1250kg	9kg	93mm	181mm	197mm	90mm	8-14mm
55ST	Alloy	2.8:1	11.2:1	13.8:1	54:1	1480kg	12.2kg	105mm	205mm	233mm	115mm	8-16mm
65ST	Alloy	3.1:1	14.8:1	13.4:1	64:1	1700kg	16.6kg	118mm	228mm	251mm	119mm	8-18mm
