Exceptional performance, enhanced aesthetics

The Lewmar DTX Stainless Steel Anchor fills the
gap between the existing galvanised and stainless Delta anchors,
allowing boat owners and builders to specify a stainless steel
anchor for a significantly reduced outlay. Made from 316 stainless
steel, the DTX anchors feature exceptional anti-corrosion
performance and the enhanced aesthetics that stainless anchors
offer. Utilising lead ballast encapsulated within the tip of the
anchor to achieve the perfect centre of gravity, the DTX offers the
initial bite and holding reliability that users of Lewmar’s Delta
anchors have come to expect. Every DTX anchor is certified to
Lloyd’s Ordinary Holding Power standard.

Lewmar DTX Stainless Steel Anchor 6kg
Features:

• Manufactured from 316 stainless steel
• Polished stainless steel
• Self launching
• Ordinary Holding Power certified
• Guaranteed for 3 years against breakage
• Delta style geometry – unique shank profile and ballasted tip
  for fast accurate setting
• Useful eye for anchor trip line
• Weight concentrated over tip for quick setting
• Support bar to help prevent fluke deformation

Lewmar DTX Stainless Steel Anchor
Specifications:

Part No.	Weight	Recommended Boat Length	Recommended Chain Size
57206	6kg (14lb)	6-9.2m (20-30ft)	6-7mm
57210	10kg (22lb)	9.2-12.2m (30-40ft)	8mm
57216	16kg (35lb)	12.2-15.2m (40-50ft)	8mm
57220	20kg (44lb)	15.2-18.3m (50-60ft)	10mm
57225	25kg (55lb)	18.3m (60ft)	10mm
57232	32kg (70lb)	18.3-21.3m (60-70ft)	10mm
57240	40kg (8lb)	21.3-24.4m (70-80ft)	10mm
57250	50kg (110lb)	24.4-27.4m (80-90ft)	12mm
57263	63kg (140lb)	27.4m (90ft)	12mm

Note: Higher boat length represents
the upper limit of model. If in doubt, move up a model. This
information is for guidance only, please consult the relevant
Classification Society for specific certification
requirements.

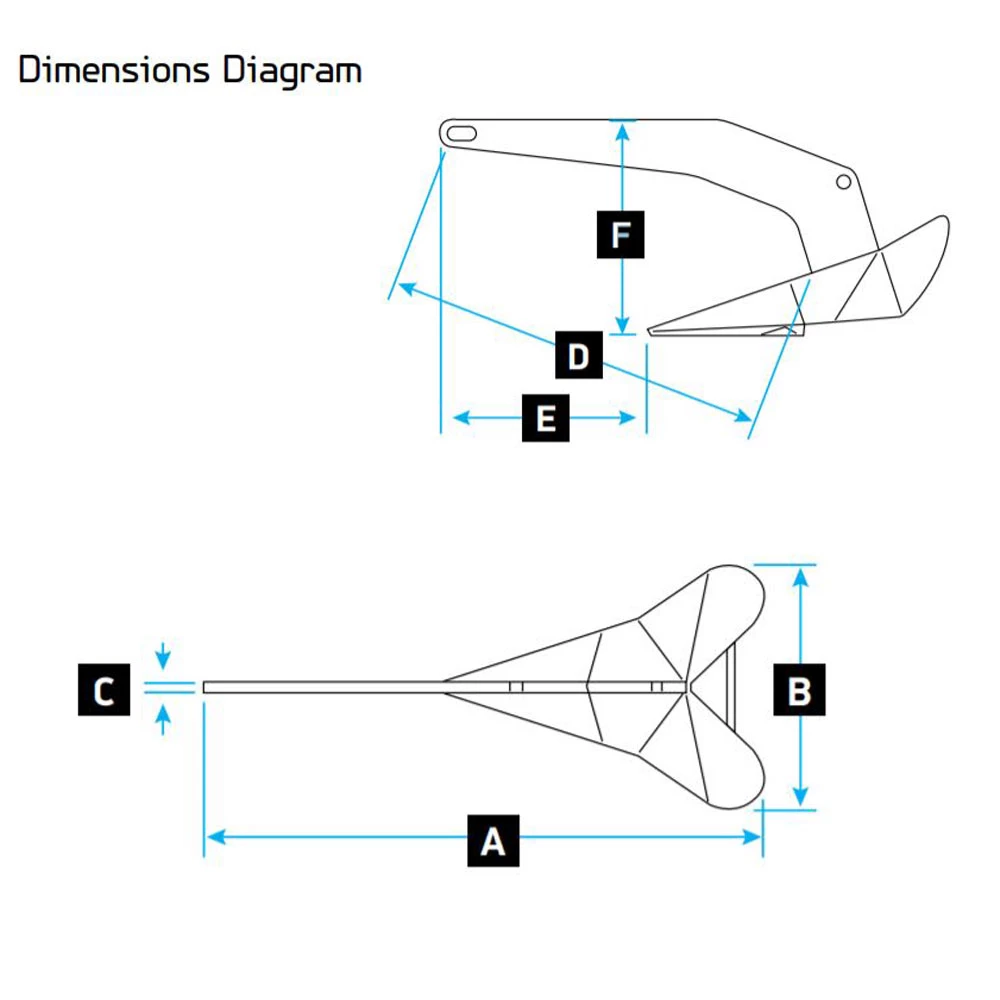

Dimensions:

Weight	A	B	C	D	E	F
6kg (14lb)	593mm	265mm	10mm	450mm	243mm	254mm
10kg (22lb)	695mm	310mm	13mm	526mm	282mm	292mm
16kg (35lb)	812mm	362mm	13mm	614mm	328mm	339mm
20kg (44lb)	877mm	392mm	16mm	663mm	357mm	368mm
25kg (55lb)	945mm	415mm	16mm	713mm	387mm	398mm
32kg (70lb)	1023mm	453.5mm	20mm	775mm	425mm	432mm
40kg (8lb)	1103mm	489mm	20mm	883mm	437mm	461mm
50kg (110lb)	1175mm	523mm	20mm	890mm	479mm	486mm
63kg (140lb)	1270mm	567mm	25mm	963mm	508mm	537mm

Note: Dimensions subject to +/- 2%
tolerance. Please see product images for dimensional
diagram
