Hot Sale ⭐ Lewmar Delta Anchor – Stainless Steel ❤️

Consistent and reliable in performance

Its unique shank profile and ballasted tip make the Lewmar
Delta Anchor Stainless Steel self-launching. The low
centre of gravity and self-righting geometry ensure that the Delta
anchor will set immediately. Consistent and reliable in
performance, the Delta anchor has Lloyd’s Register General Approval
of an Anchor Design as a High Holding Power anchor and is specified
as the primary anchor used by numerous National Lifeboat
organisations. Also available in premium grade Duplex/High Tensile
stainless steel.

All Delta anchors are guaranteed for life against breakage. Lloyd’s
Test Certification is available for individual Delta anchors by
arrangement.

Lewmar Delta Anchor Stainless Steel Features:

• Manufactured from high grade manganese steel.
• Self launching
• Lloyd’s Register Type Approval
• Guaranteed for life against Breakage
• Lloyd’s Test Certification available
• Recommended Chain: 8mm

Note: Damage by deformation or bending is not
covered by this guarantee.

Lewmar Delta Anchor Specifications:

Part No.	Weight	Recommended Boat Length	Recommended Chain Size
57310	10kg (22lb)	9.2-12.2m (30-40ft)	8mm
57316	16kg (35lb)	12.2-15.2m (40-50ft)	8mm
57320	20kg (44lb)	15.2-18.3m (50-60ft)	10mm
57325	25kg (55lb)	18.3m (60ft)	10mm
57332	32kg (70lb)	18.3-21.3m (60-70ft)	10mm
57340	40kg (8lb)	21.3-24.4m (70-80ft)	10mm
57350	50kg (110lb)	24.4-27.4m (80-90ft)	12mm

Note: Higher boat length represents
the upper limit of model. If in doubt, move up a model. This
information is for guidance only, please consult the relevant
Classification Society for specific certification
requirements.

Dimensions:

table.tableizer-table {font-size: 12px;border: 1px solid #CCC; font-family: Arial, Helvetica, sans-serif;} .tableizer-table td {padding: 4px;margin: 3px;border: 1px solid #CCC;}.tableizer-table td {text-align:center; vertical-align:middle;}.tableizer-table th {background-color: #219DAF; color: #FFF;font-weight: bold;padding; 3px;border: 1px solid #CCC}

Weight	A	B	C	D	E
10kg (22lb)	695mm	308mm	12mm	526mm	283mm
16kg (35lb)	812mm	360mm	12mm	614mm	334mm
20kg (44lb)	877mm	389mm	16mm	663mm	361mm
25kg (55lb)	945mm	417mm	16mm	713mm	384mm
32kg (70lb)	1026mm	455mm	16mm	774mm	417mm
40kg (8lb)	1099mm	489mm	20mm	835mm	446mm
50kg (110lb)	1175mm	520mm	20mm	890mm	479mm

Note: Dimensions subject to +/- 2%

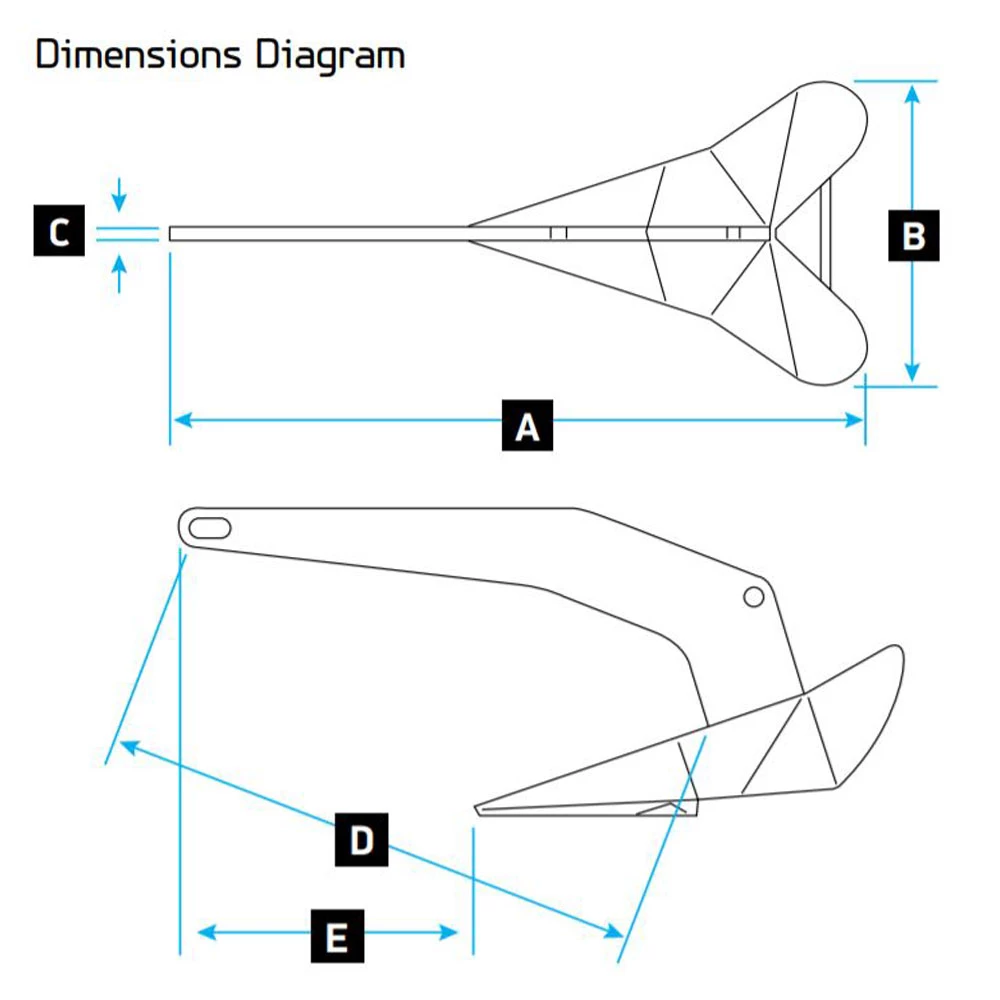

tolerance. Please see product images for dimensional
diagram
Note: Bulk item shipping rates (see
table here) only apply on items weighing 25kg and above. Please
note that bulk items are shippable to New Zealand
only.
