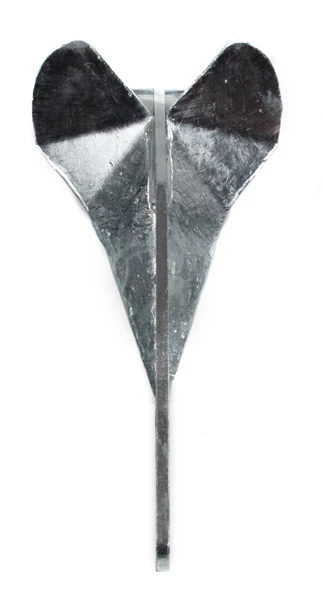

Coupon ???? Lewmar Delta Anchor Galvanised 32kg ????

Fast setting self righting anchor

Its unique shank profile and ballasted tip make the Lewmar
Delta Anchor Galvanised self-launching. The low centre of
gravity and self-righting geometry ensure that the Delta anchor
will set immediately.

Self-Launching
The Lewmar Delta Anchor is a self-launching
anchor. That means the anchor will fall away from the bow under its
own weight when the chain is paid out.

Consistent and Reliable Performance
The Lewmar Delta Anchor has Lloyd’s Register Type
Approval as a High Holding Power anchor and is specified as the
primary anchor used by numerous National Lifeboat organisations.
Lloyd’s Test Certification is available for individual Delta
anchors by arrangement.

Lewmar Delta Anchor Galvanised Features:

• Manufactured from high grade manganese steel
• Self launching
• Lloyd’s Register Type Approval
• Guaranteed for life against Breakage
• Lloyd’s Test Certification available

Lewmar Delta Anchor Galvanised Specifications:

• Part number: 0057432
• Recommended Chain Size: 10mm
• Weight: 32kg
• Recommended for boats up to 60-70ft (18.3-21.3m)

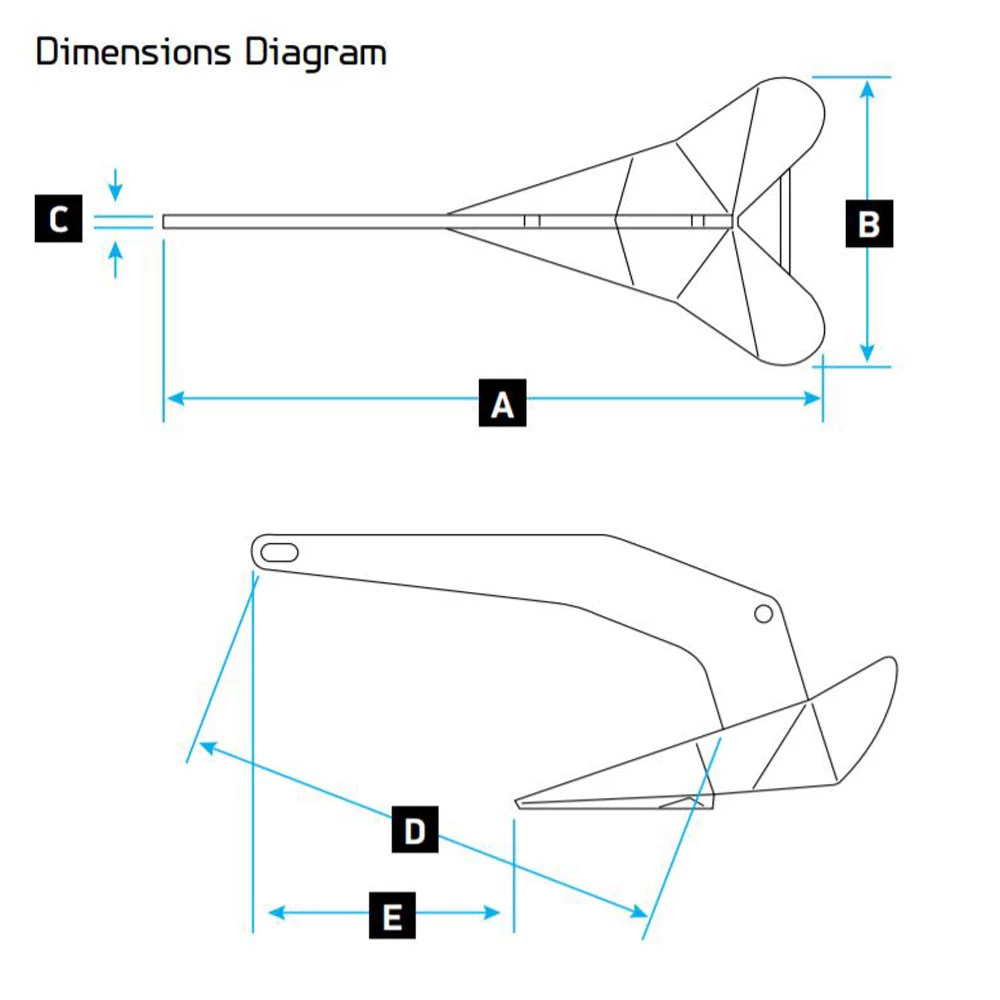

• Dimensions (see images for diagram)
  A: 1026mm
  B: 455mm
  C: 16mm
  D: 774mm
  E: 417mm
